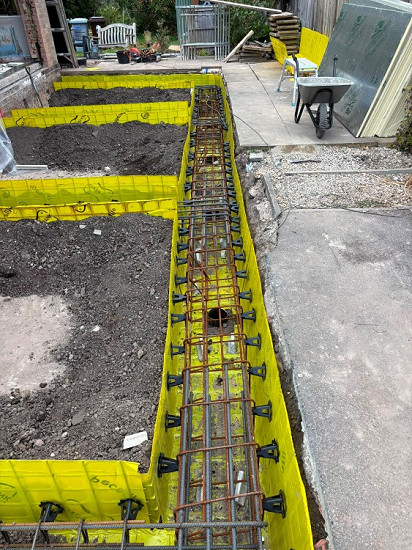

Steel Cased Piling for a House Extension in Southwell, Nottinghamshire
Westbuild Piling recently completed the design and construction of a piled foundation for a single-storey house extension in Southwell, Nottinghamshire.
The homeowner required a specialist foundation solution because of poor ground conditions beneath the proposed extension.
Westbuild designed and constructed the complete foundation using 10no 150mm diameter steel cased piles, with an average pile length of approximately six metres, together with around 23 linear metres of reinforced concrete ground beams.
Why Was Piling Required for the Extension?
Poor ground conditions can mean that conventional shallow foundations are not suitable for a house extension.
Where suitable bearing ground lies deeper below the surface, piling can be used to transfer the loads from the new structure through weaker ground and onto more competent strata below.
For this Southwell property, poor ground conditions meant that a specialist piled foundation was required for the new single-storey extension. Southwell P4920 - 623
Westbuild provides residential piling solutions for house extensions, new-build homes and other domestic projects where the ground conditions require an alternative to conventional foundations.
The Steel Cased Piling Solution
Westbuild installed 10 steel cased piles, each 150mm in diameter, with an average pile length of approximately six metres.
Steel cased piling can provide an effective foundation solution where structural loads need to be transferred through poor or unsuitable near-surface ground.
For this residential extension, the piles formed the primary support for the reinforced concrete foundation system above.
Using a piled solution allowed the extension loads to be supported independently of the weaker ground conditions identified beneath the footprint of the new building.
Reinforced Concrete Ground Beams

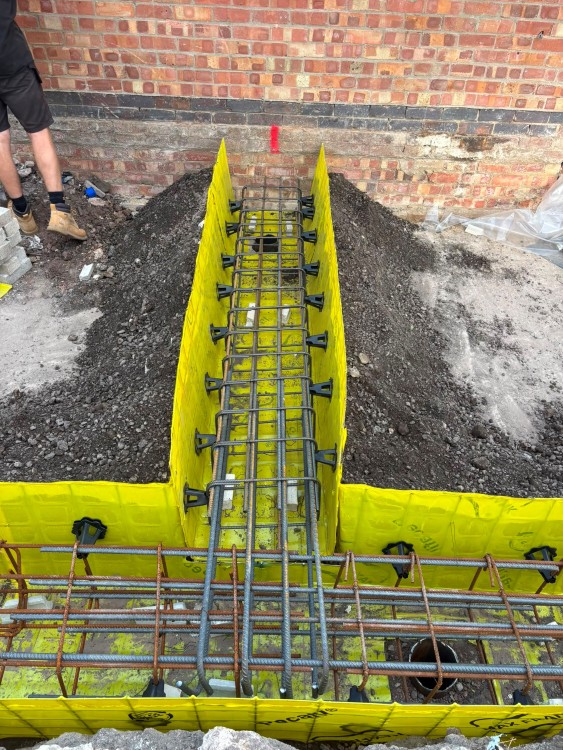

The pile foundation also incorporated approximately 23 linear metres of reinforced concrete ground beams, measuring 500mm wide by 450mm deep.
RC ground beams span between the piles and transfer the loads from the building into the piled foundation system below.
Combining steel cased piles with reinforced concrete ground beams provided a complete foundation solution specifically designed for the house extension and the conditions encountered on site.
Designed and Constructed by Westbuild Piling
Westbuild was responsible for both the design and construction of the piling and reinforced concrete foundation.
This meant the foundation solution could be developed around the requirements of the extension and the poor ground conditions beneath the proposed footprint.
For homeowners and builders, involving an experienced piling contractor can be particularly useful when unexpected ground conditions mean that the original foundation proposal is no longer suitable.
Recommended by a Previous Customer
The homeowner contacted Westbuild after being recommended by a neighbour for whom the company had previously completed piling works. Southwell P4920 - 623
Recommendations like this are particularly valuable on domestic piling projects, where homeowners may be dealing with specialist foundation work for the first time and want confidence that the contractor they appoint has successfully completed similar projects.
Following completion of the work, the homeowner was extremely pleased with both the finished project and the overall service provided by Westbuild. Southwell P4920 - 623
Completed in Four Days
The piling and reinforced concrete foundation works commenced on 17 August and were completed on 20 August.
Within that period, Westbuild installed the steel cased piles and constructed the reinforced concrete ground beam system required for the new extension. Southwell P4920 - 623
Piling for House Extensions and Residential Projects
Discovering poor ground beneath a proposed extension can be an unexpected complication, but it does not necessarily prevent the project from progressing.
A properly designed piled foundation can provide an effective solution by transferring the structural loads from the extension through unsuitable ground to stronger bearing strata below.
Westbuild Piling provides residential piling and foundation solutions for homeowners, builders and structural engineers throughout the UK.
Our services include steel cased piling, mini piling and reinforced concrete ground beams, allowing the foundation system to be matched to the property, structural requirements and ground conditions.
If poor ground has been identified beneath your proposed extension, or you have been advised that your house extension needs piling, contact Westbuild Piling to discuss the project.
