Steel Cased Piling for New Build Homes in Birkenshaw, West Yorkshire
Westbuild Piling recently completed the design and construction of piled foundations for a new-build housing project in Birkenshaw, West Yorkshire.
The works were carried out for Riva Homes and required a specialist foundation solution because of the presence of a nearby tree, with piling needed to satisfy the requirements of NHBC.
Westbuild designed and installed 10no 150mm diameter steel cased piles, with pile lengths of up to six metres, together with approximately 20 linear metres of reinforced concrete ground beams.
Why Was Piling Required?
Foundation design for new-build homes needs to take account of both the ground conditions and features surrounding the proposed development.
For this project in Birkenshaw, the presence of a tree meant that a piled foundation was required in order to satisfy NHBC requirements. Birkenshaw, West Yorkshire P511…
Where trees are located close to a new development, the foundation design may need to take their presence into account when determining an appropriate structural solution.
Westbuild provides residential piling solutions for new-build homes, self-build developments, house extensions and other domestic projects requiring specialist foundations.
The Steel Cased Piling Solution
Westbuild designed and constructed 10 steel cased piles, each 150mm in diameter, with pile lengths of up to approximately six metres, measured from the underside of the reinforced concrete ground beam.
Steel cased piling provides an effective foundation solution where loads from a new structure need to be transferred to suitable bearing ground below.
For this residential development, the piles created the structural support required for the reinforced concrete foundation system above.

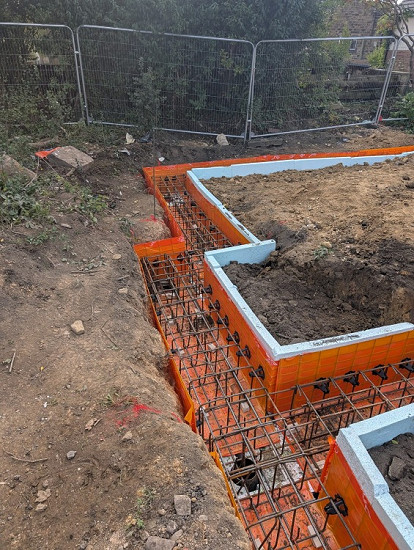

Reinforced Concrete Ground Beams
Once the piling had been installed, Westbuild constructed approximately 20 linear metres of reinforced concrete ground beams in accordance with the engineer's drawings. Birkenshaw, West Yorkshire P511…
RC ground beams span between the piles and transfer the loads from the building into the piled foundation system.
Combining steel cased piles with reinforced concrete ground beams created a complete foundation solution for the new-build project.
Designed and Constructed by Westbuild Piling
Westbuild was responsible for both the design and construction of the piled foundation, while the reinforced concrete ground beams were constructed in accordance with the engineer's drawings.
This allowed the piling solution to be coordinated with the structural foundation design and the requirements of the development.
For housebuilders, developers and self-builders, specialist piling can provide an effective solution where site conditions or warranty requirements mean that conventional shallow foundations are not appropriate.
Project Completion
Works commenced on 30 September and were completed on 5 October.
During this period, Westbuild installed the 10 steel cased piles and constructed the associated reinforced concrete ground beams required for the new-build foundation. Birkenshaw, West Yorkshire P511…
Following completion, the client commented:
“I am very happy with the job, the lads were great.”
Birkenshaw, West Yorkshire P511…
Piling for New Build Homes
New-build homes can require piled foundations for a variety of reasons, including ground conditions, nearby trees, structural requirements or the recommendations of engineers and warranty providers.
Westbuild Piling provides residential piling for housebuilders, developers, self-builders and homeowners throughout the UK.
Our foundation services include steel cased piling, mini piling and reinforced concrete ground beams, allowing the proposed foundation system to be matched to the development, structural design and site requirements.
If you have been advised that your new-build home requires piling, or piling is required to meet structural or NHBC requirements, contact Westbuild Piling to discuss the project.
